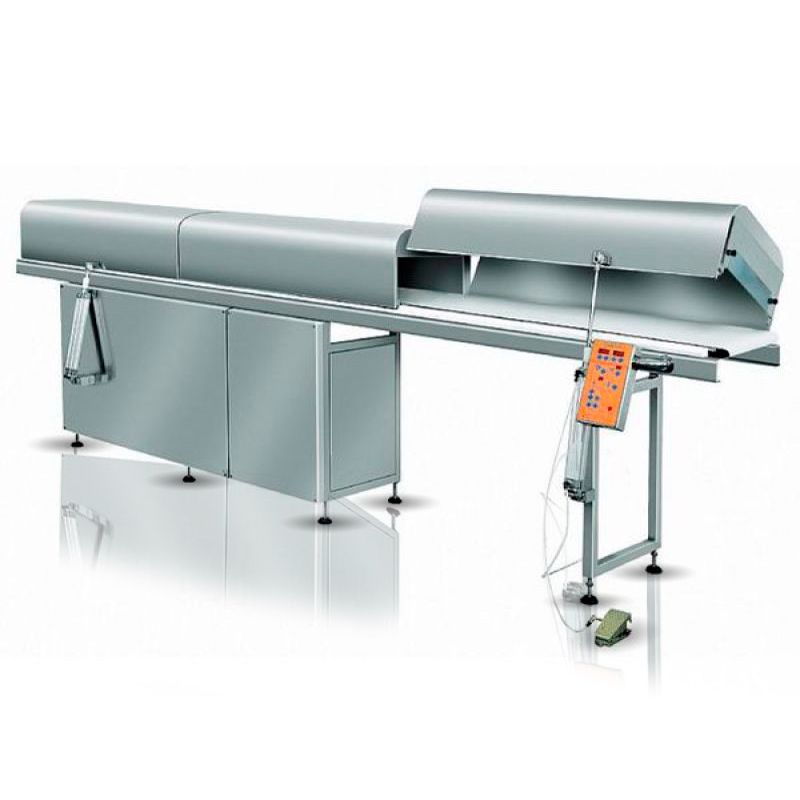

Cooling tunnel FBM CLIMATICO

Description

The FBM CLIMATICO cooling tunnel is designed to cool chocolate products and chocolate glaze on confectionery products after decoration. The Climatico cooling tunnel can consist of several cooling sections. The products are cooled by circulating cold air. The refrigerant used is freon R-22. Due to the reduced humidity, the cooling system ensures optimal crystallization of chocolate. The tunnel refrigeration chamber is made of stainless steel and insulated with sandwich panels. Automatic evaporator defrosting. The air circulation capacity inside the tunnel is 950 cubic meters/hour. A special conveyor movement pattern allows separating the blanks from the belt. Possibility of installing remote refrigeration (removal up to 15 m.) Equipment: polymer multilayer tape; Automatic tape centering system; tape cleaning system.

Technical specifications: Tape width - 400 mm; Length of the tunnel working area - 4000 mm; Cooling capacity - 6.6 kW;

Specification

Belt speed, m/min	0.5-3
Body color	Grey
Country of origin	Italy
Equipment type	Cooling tunnel
Installation type	Floor
Length of the r/z, mm	4000
Power supply	Electricity
Power, kW	3.5
Size	5100(7100)х750х1350
Supply voltage, V	380
Tape size, mm	400
Temperature conditions, C	0...+15
Warranty period, months	12
